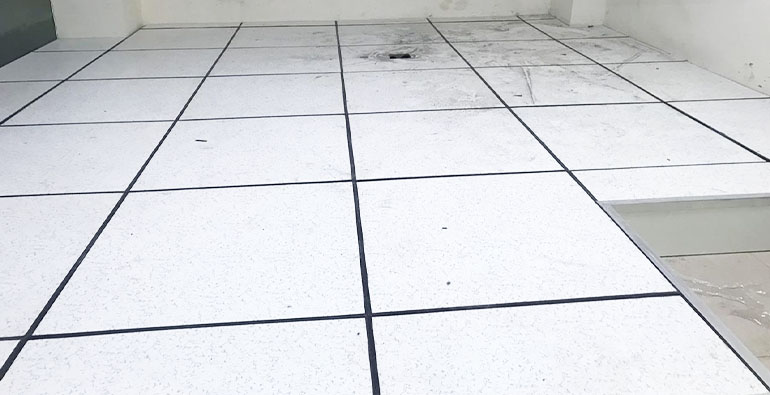

False Flooring / Raised Flooring

Our Company has expertise in manufacturing of contemporary false flooring or raised flooring. These commercial false flooring are durable and give contemporary look to office or commercial place. Our manufactured false flooring or raised flooring are developed from world class flooring materials to meet diversified requirements of clients.

Anti Static False Flooring: Anti Static raised false flooring are widely used in either commercial sector or residential sector. Our elegant collection of static false flooring enhances the interior of your home. These decorative false flooring are widely used in server rooms control rooms, call centers, labs,residential and commercial applications.

Range of False Flooring panels:

  1. Bare Panel
  2. Anti Static Panel
  3. Wood Core Panel

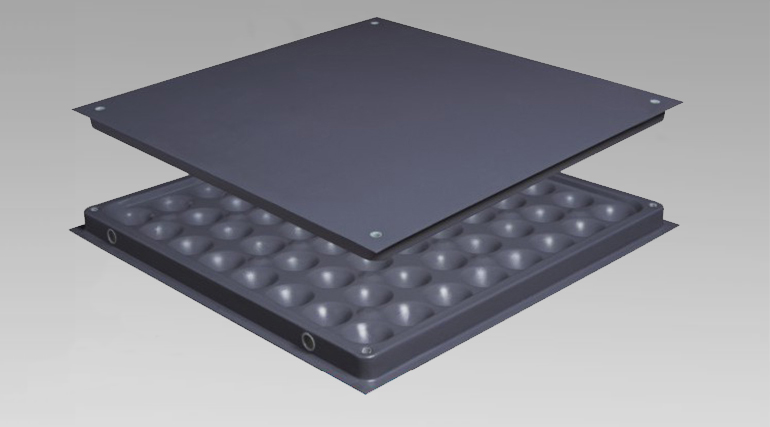

Bare panels:

  1. Corner Lock Systems
  2. Self Locking System
  3. Truncking System

Structure

Product Name VD Floor
Code VD Bare Panel
Material Metal infield with Cement
Finish Power Coat
Mounting Method Corner locking
Area of Use Office areas, Workstations, Cabins
Size 600 * 600 * 35mm
Type Size Concentrated Impact Load Ultimate Load Uniform Load Rolling Load
International mm N/KG N/KG N/KG N/M 10 10000
VFS800 600*600*35 3550/362 670/68 10650/1087 13590 3120 2260
VFS1000 600*600*35 4440/450 670/68 13320/1360 16750 3550 3120
VFS1250 600*600*35 5550/556 670/68 16650/1700 19100 4440 3596

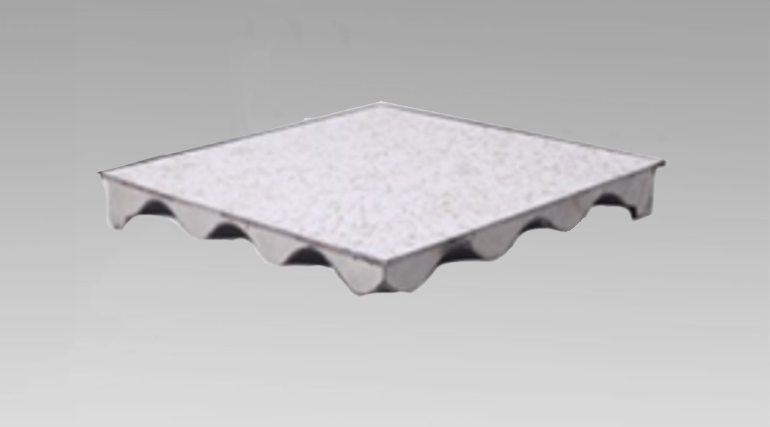

Anti Static Laminate Panel:

  1. VFS 800
  2. VFS 1000
  3. VFS 1250

Structure

Product Name VD Floor
Code VD HPL Finish (Metal infield with Cement)
Material Top with 1.2mm Anti-static Laminate
Finish Power Coat
Mounting Method Corner locking
Area of Use Office areas, Workstations, Cabins
Size 600 * 600 * 35mm
Type Size Concentrated Impact Load Ultimate Load Uniform Load Rolling Load Remarks
International mm N/KG N/KG N/KG N/M 10 10000 Floor System Resistance
VFS800 600*600*35 3550/362 670/68 10650/1087 13590 3120 2260 1*10 ^ 5-*10 ^ 9
VFS1000 600*600*35 4440/450 670/68 13320/1360 16750 3550 3120
VFS1250 600*600*35 5550/556 670/68 16650/1700 19100 4440 3596

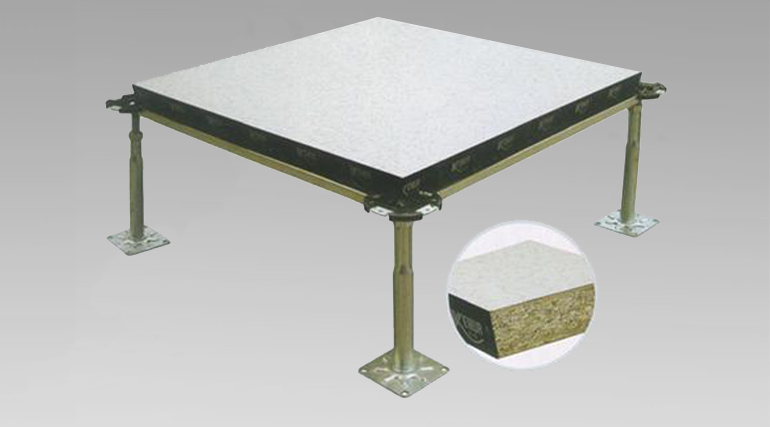

Structure

Woodcore access floor consists of high-density (720kg/m) chipboard. Galvanized steel sheet sheet/aluminium foil is bonded to the bottom of the chipboard. HPL or PVC is stuck to the top of the chipboard, four edges are sealed with PVC edging strip.

Type Size Concentrated Impact Load Ultimate Load Uniform Load Rolling Load
International mm N/KG N/KG N/KG N/M 10 10000
Light duty 600*600 1550/150 400/40 4500/450 6700 2100 1300
Medium Duty 600*600 3000/300 400/40 9000/90 8000 2600 2100
